MPDiT: Multi-Patch Global-to-Local Transformer Architecture

TL;DR

MPDiT is a global-to-local diffusion transformer. It runs most transformer blocks on coarse, large-patch tokens to capture global structure, then upsamples and uses only a few high-resolution blocks for local refinement. The design reduces GFLOPs by up to 50% while preserving strong generative quality.

Global first

Early blocks use patch size 4, reducing the latent token count from 256 to 64.

Local refinement

Only the final local blocks use patch size 2, recovering details at the end.

Better conditioning

Shared AdaIN, multi-token class conditioning, and FNO time embedding improve training convergence.

59.3GFLOPs for MPDiT-XL

7.36FID without CFG

2.05FID with CFG

49.9%GFLOPs vs dense XL

Method

Instead of applying the same token resolution in every transformer block, MPDiT treats the network as a coarse-to-fine hierarchy. The first stage models global context with larger patches. An upsample module then expands the sequence and injects a fine patch embedding skip connection before final high-resolution refinement.

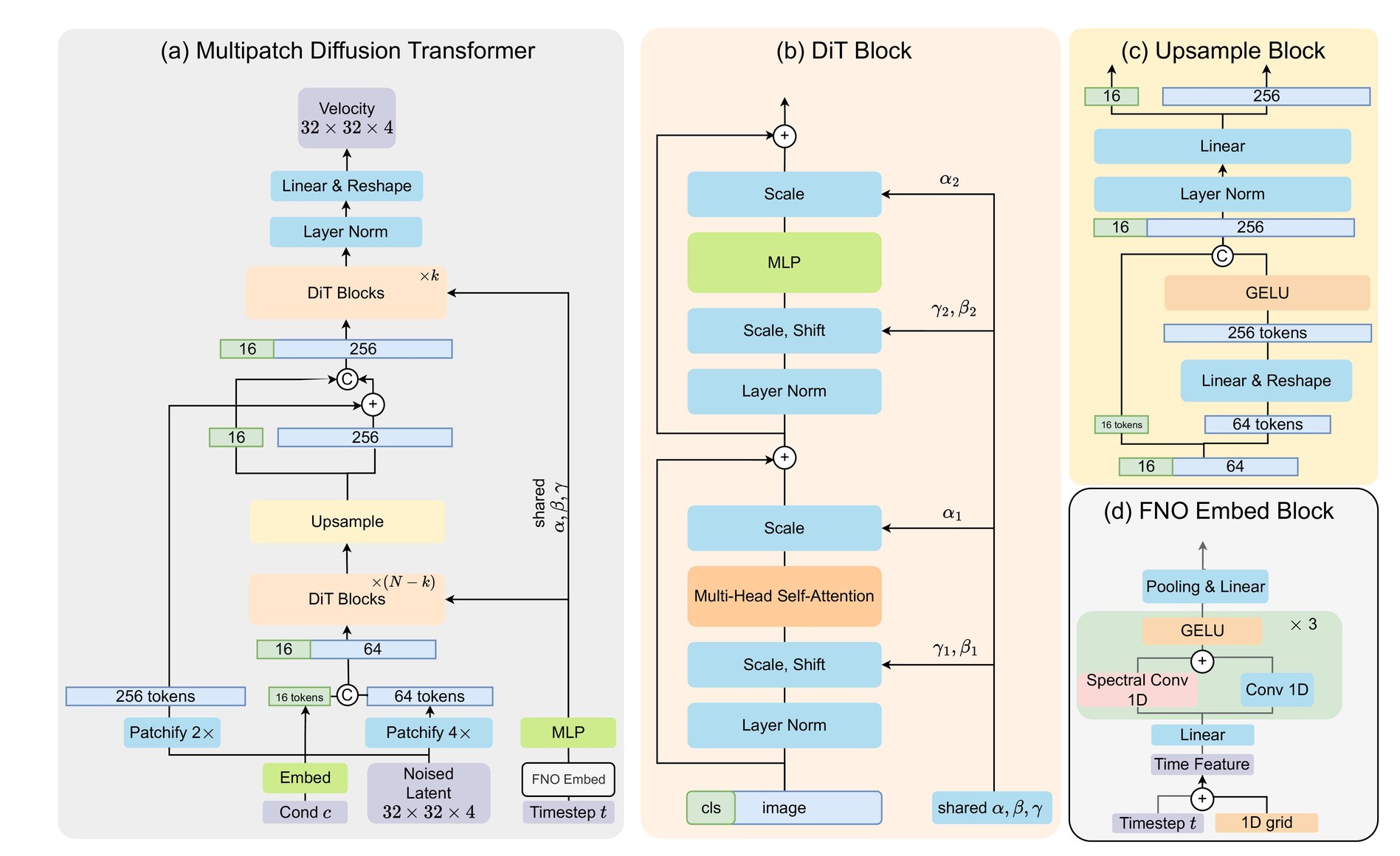

**Figure 2.** MPDiT architecture overview: global-local multi-patch transformer, shared-conditioning DiT block, upsample module, and FNO time embedding.

Results

MPDiT improves the quality-compute trade-off on ImageNet generation. The table below highlights representative ImageNet 256 results from the paper.

**Table 1.** Quantitative performance on ImageNet 256. Lower FID and GFLOPs are better.
Model	Epochs	GFLOPs	FID	sFID	IS	Precision	Recall
SiT-B/2	80	23.02	34.84	6.59	41.53	0.52	0.64
DiCo-B	80	16.88	27.20	-	56.52	0.60	0.61
MPDiT-B	80	16.60	24.74	6.32	57.40	0.58	0.65
SiT-XL/2	80	118.66	18.04	5.07	73.90	0.63	0.64
DiCo-XL	80	87.30	11.67	-	100.42	0.71	0.61
MPDiT-XL	80	59.30	9.92	5.05	102.79	0.70	0.64
DiG-XL/2-G	240	89.40	2.07	4.53	278.95	0.82	0.60
MPDiT-XL-G	240	59.30	2.05	4.51	278.73	0.82	0.61

**Table 2.** Model configuration and computational cost.
Model	N	k	Model Dim D	GFLOPs	GFLOPs ratio vs DiT
MPDiT-B	12	6	768	16.6	72.1%
MPDiT-XL	28	6	1152	59.3	49.9%

**Table 3.** Ablation on MPDiT components after 80 epochs.
Method	Params (M)	GFLOPs	FID
DiT-B/2	130.0	23.0	34.84
+ Shared AdaIN	90.3	22.9	35.31
+ Multi-token class embedding	101.9	24.3	28.56
+ FNO time embedding	101.2	24.3	24.52
+ MPDiT, k = 6	104.8	16.6	24.74

**Table 4.** Ablation on the number of local high-resolution blocks k.
Configuration	Method	Params (M)	GFLOPs	FID
B	DiT-B/2 dagger	101.2	24.3	24.52
B	MPDiT k = 4	104.8	13.9	26.94
B	MPDiT k = 6	104.8	16.6	24.74
B	MPDiT k = 8	104.8	19.3	24.62
XL	DiT-XL/2 dagger	473.1	125.5	9.22
XL	MPDiT k = 4	481.2	53.2	11.11
XL	MPDiT k = 6	481.2	59.3	9.92
XL	MPDiT k = 8	481.2	65.4	9.73

Qualitative samples

Additional ImageNet samples from the project assets.

ImageNet 512 qualitative results — **Figure 3.** ImageNet 512 qualitative samples generated by MPDiT.

Class 113 - snail

Class 33 - loggerhead turtle

Class 84 - peacock

Class 37 - box turtle

Class 88 - macaw

Class 207 - golden retriever

Class 417 - balloon

Class 947 - mushroom

Class 980 - volcano

Class 971 - bubble

Video talk

A short presentation video is included with the page assets.
